A guide to equipment room grounding should start with one hard truth: a rack can look orderly, power on normally, and still carry an infrastructure defect that only appears during a fault, surge, or service event. Grounding is not a finishing detail for the electrical contractor or a line item for the cabling team. It is a continuity control spanning the room, the building electrical system, connected equipment, and the records needed to prove what was installed.
For commercial buildings, the risk is rarely that nobody installed a ground conductor. The risk is fragmented responsibility. Electrical work, telecom cabling, network hardware, access control, building controls, and surge protection may all be delivered by different parties. If nobody owns the complete bonding path and final acceptance evidence, the room may have gaps that are hidden until downtime becomes expensive.
What equipment room grounding is meant to do
Grounding and bonding are often used as if they mean the same thing. They are related, but the distinction matters. Grounding connects a system to earth through the building's grounding electrode system. Bonding connects conductive components together so they remain at substantially the same electrical potential and provide an effective fault-current path.
In an equipment room, that generally means the telecommunications grounding busbar, racks, cabinets, ladder trays, cable pathways, equipment chassis, power distribution components, and metallic raceways are bonded according to the approved design and applicable code. The exact configuration depends on the room type, electrical architecture, equipment load, and local requirements. A small telecom room is not a data center, and a room serving life-safety or operational technology systems may require a more disciplined review than an ordinary office IDF.
The business outcome is straightforward. Proper bonding supports protective-device operation during a fault, reduces differences in potential between exposed conductive components, and gives surge protection a defined path. It also limits the kind of intermittent behavior that sends teams chasing phantom network, power, or hardware problems.
Start with the room boundary, not the rack
A common failure mode is treating grounding as a rack-by-rack task. That approach misses the actual system boundary. Before construction or remediation begins, define what enters, exits, and is physically connected within the room.
Review the incoming electrical service and panelboards, UPS and generator interfaces where present, branch circuits, cable tray, ladder rack, conduit, metallic pathways, backbone cabling, outside plant connections, antennas, and building systems connected through the room. Include security panels, controls gateways, wireless equipment, and any third-party carrier equipment. Each connection can create a bonding requirement, a surge exposure, or an ownership question.
The drawing package should show more than a grounding symbol beside a rack. It should identify the telecommunications grounding busbar, conductor sizes and routes, approved attachment points, rack bonding conductors, pathway bonding jumpers, and the connection back to the building grounding system. If the installation changes in the field, the record must change with it. A redlined drawing left in a job binder is not operational documentation.
Do not substitute paint, hardware, or assumptions for a bond
Painted rack frames, loose hardware, corroded lugs, and improvised jumpers are frequent sources of poor continuity. A rack mounted to a concrete floor or connected to ladder rack is not automatically bonded in a verifiable way. Mechanical contact is not the same as a documented bonding connection.
Use listed components, follow the equipment and pathway manufacturer requirements, and make connections accessible for inspection where practical. More conductor is not automatically better. Oversizing, rerouting, or adding parallel paths without engineering review can complicate fault-current behavior and obscure the intended design. The goal is a code-compliant, standards-aligned installation that can be inspected, tested, and maintained.
Assign one owner for the complete grounding path
Grounding defects thrive in handoffs. The electrical contractor may own the connection to the building electrical grounding system. The low-voltage contractor may install the busbar and rack bonds. The network team may install equipment after final inspection. Facilities may inherit the room without knowing what was tested. Each party can reasonably say its own scope is complete while the end-to-end system remains unverified.
Assign a single accountable owner for acceptance, even when multiple specialists perform the work. That owner does not need to self-perform every task. They do need authority to require drawings, inspect workmanship, resolve scope gaps, and reject a room that lacks evidence.
A practical responsibility matrix should identify who designs the system, who installs each segment, who verifies continuity and connections, who reviews test evidence, and who updates the asset and room documentation. It should also define who approves later changes. Without that control, a new cabinet, pathway extension, or carrier install can quietly defeat the original design.
Verify the installation before equipment goes live
Visual inspection is necessary but insufficient. Final acceptance should combine records review, physical inspection, and testing appropriate to the design and site conditions. The qualified electrical professional should determine the test method and acceptance criteria. Facilities and IT leaders should ensure the test actually occurs and that the evidence is retained.

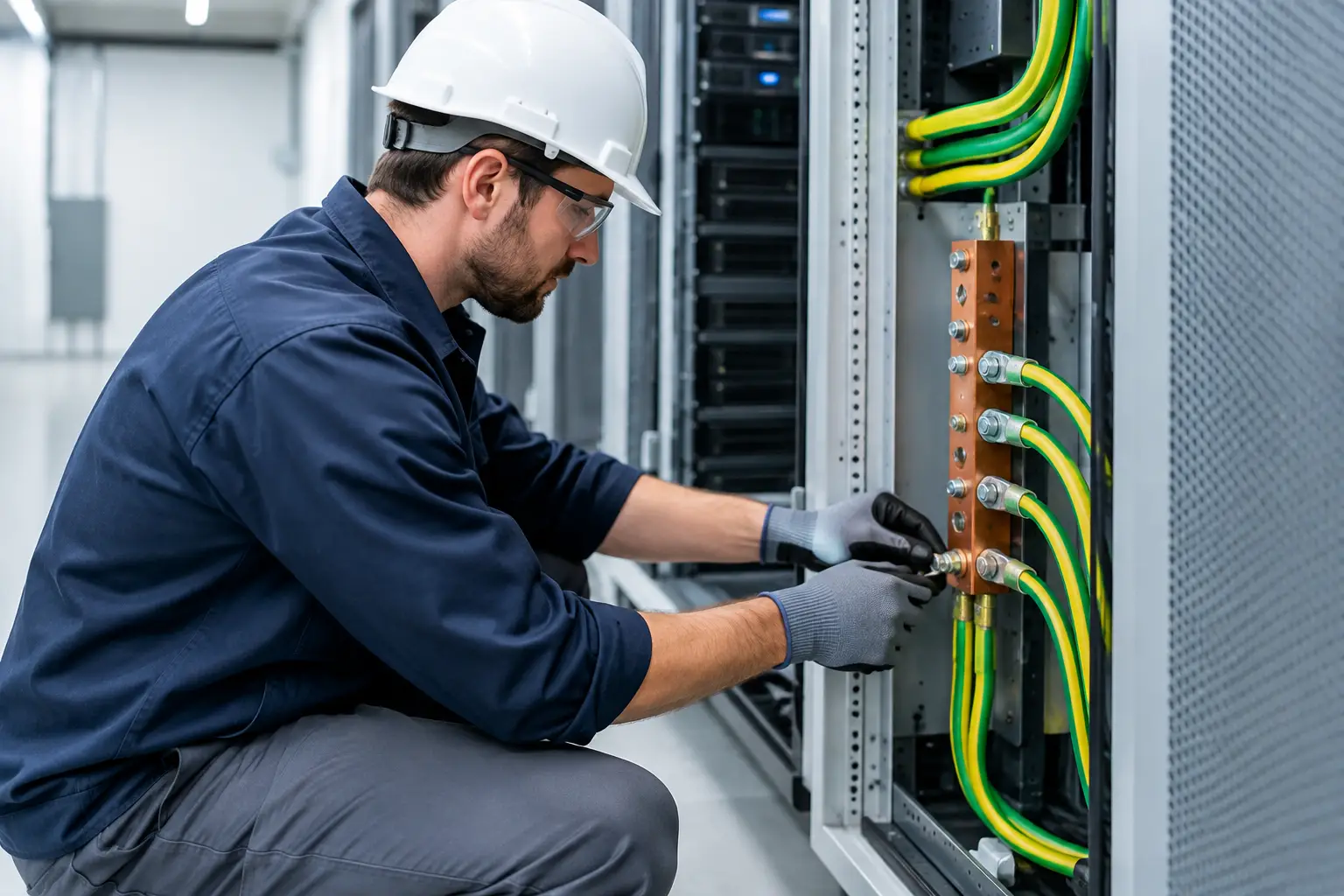

The acceptance package should confirm the grounding busbar is installed in the designed location, labeled, and connected to the intended building grounding point. It should confirm racks and metallic pathways have dedicated bonding connections where required, connections are secure and protected from damage, and conductor routes match the approved documents.
Testing should establish continuity of the bonded components and verify that no unintended condition has been introduced by construction changes. Where a facility's electrical maintenance program calls for it, include related inspection of surge protective devices, electrical panels, and upstream grounding components. Do not confuse a passing outlet tester or a powered-on switch with proof that room bonding is complete.
For rooms with sensitive systems, capture photographs of busbars, rack bonds, pathway bonds, labels, and cable entrance points during turnover. Photos are not a substitute for test results, but they are useful when a future technician needs to determine whether a connection was removed, altered, or never present.
Treat changes as grounding events
Most equipment rooms do not fail at initial turnover. They drift over time. A contractor adds a cabinet after hours. A pathway is extended for a tenant build-out. A cable entrance protector is replaced. A UPS is changed. The room's physical topology changes, but no one checks whether the bonding topology changed with it.
Make grounding review part of the change process for any work that adds or removes conductive infrastructure, modifies electrical distribution, introduces outside plant or carrier facilities, or moves equipment between racks. The review can be brief for a controlled, repetitive installation. It should be more formal when the change affects service entrances, critical systems, or fault-current paths.
Update the room record after each approved change. At minimum, retain the current grounding diagram, busbar location, conductor routes, inspection results, photos, equipment-room layout, and responsible contacts. A record that cannot be found during an outage is not a control.
Build grounding into routine operations
Grounding should appear in the same operational rhythm as UPS battery checks, firmware governance, and access reviews. The inspection frequency depends on room criticality, environmental conditions, change volume, and the facility electrical maintenance program. High-change rooms and harsh environments deserve more frequent attention than stable, climate-controlled rooms.
During inspections, look for loose or damaged conductors, corrosion, unauthorized connections, missing labels, modifications to rack or pathway layouts, and work that bypasses the documented route. Investigate repeated equipment damage, unexplained port failures, nuisance alarms, or surge-protection indicators rather than treating each as an isolated hardware issue. These symptoms do not prove a grounding defect, but they justify checking the physical infrastructure.
The practical standard is not whether the room has a green wire somewhere in view. It is whether the grounding and bonding system is designed for the room, installed as documented, tested at turnover, and governed through every change. When one owner carries that standard across electrical, cabling, facilities, and IT work, grounding becomes what it should be: a quiet control that helps the building keep operating when conditions are not quiet.
