A fiber link can look finished, pass a basic connectivity check, and still become the source of recurring outages after a building opens. A guide to fiber optic testing must therefore address more than whether light reaches the other end. Commercial teams need evidence that each installed link meets its intended performance requirement, is correctly documented, and can be supported without guessing when service is interrupted.
For owners, facilities leaders, IT teams, and general contractors, fiber testing is a turnover control. It establishes whether the physical layer can support the network, building systems, security infrastructure, and future capacity it was designed to carry. If the test process is incomplete, accountability usually becomes fragmented at the exact moment a problem appears.
Why fiber testing is an operational control
Fiber is often treated as a contractor deliverable that disappears behind ceiling tiles, inside risers, and in telecom rooms. That approach creates a preventable ownership gap. The cabling installer may confirm continuity. The network team may confirm that a switch port comes up. Neither result alone proves the permanent link meets the design standard or can reliably support its planned application.
A proper acceptance process answers several different questions. Is the correct fiber type installed? Are the connectors clean and free of damage? Does end-to-end loss fall within the approved limit? Is the fiber route free from severe bends, bad splices, crushed cable, or reflective events? Are the strands labeled, polarized, and mapped correctly?
The required answer depends on the link. A short multimode backbone inside an office building does not have the same risk profile as a long single-mode campus connection, a data center trunk, or fiber serving remote building controls. The test plan should match the design, not rely on a single universal test.
Guide to fiber optic testing: start before installation
Testing begins with the design package and scope of work, not after the cable is pulled. Before installation starts, the project team should establish the fiber type, strand count, connector format, pathway route, splice locations, termination method, and intended network application for every link.
The acceptance criteria should also be set in writing. This includes the reference test method, allowable insertion-loss limit, test wavelengths, whether bidirectional testing is required, and which links require trace testing. Without these controls, the installer can produce results that appear complete but cannot be compared to the project requirement.
This is also the point to establish responsibility. One party should own the test plan, review exceptions, and confirm final acceptance. A general contractor can coordinate the work, and a cabling contractor can execute testing, but someone must be accountable for deciding whether results are acceptable for the operational environment.
A useful test plan connects each fiber ID to a location, route, endpoint, intended use, and test record. That may sound administrative, but it prevents a common turnover failure: a team receives a large spreadsheet of passing results with no dependable way to match a result to the actual patch panel, enclosure, or service it supports.
Inspect and clean before measuring
Many fiber failures are not cable failures. They are contamination failures. Dust, oil, residue, or a damaged end face can raise loss, create reflections, and interfere with optical transceivers. Connecting a dirty fiber can also transfer contamination to a clean connector or test reference lead.
Technicians should inspect connector end faces with appropriate equipment before every critical connection, then clean and reinspect as needed. This applies to permanent link connectors, patch cords, test jumpers, adapters, and active equipment interfaces. Cleaning by habit without inspection is better than doing nothing, but inspection provides the evidence needed to identify scratched, chipped, or permanently damaged connectors.
Reference cords deserve special attention. A poor reference cord can distort an entire batch of test results. If the measurement baseline is unreliable, a passing report is not meaningful. The team should verify that reference cords are suitable for the connector type and test method, clean them consistently, and replace damaged assemblies rather than trying to work around them.
Use the right test for the question
Fiber testing is not one activity. Different instruments reveal different conditions, and each has a role in acceptance.
Continuity and polarity checks
A visual fault locator or basic continuity tool can confirm that a strand is connected from one endpoint to another. It can also help identify major breaks and some incorrect routing. Polarity verification confirms that transmit and receive paths are correctly aligned, particularly on duplex links and higher-density assemblies.
These checks are useful early in installation and during troubleshooting. They are not certification tests. A strand can show continuity and still have excessive loss, a poor splice, or a bend that will create instability at higher speeds.

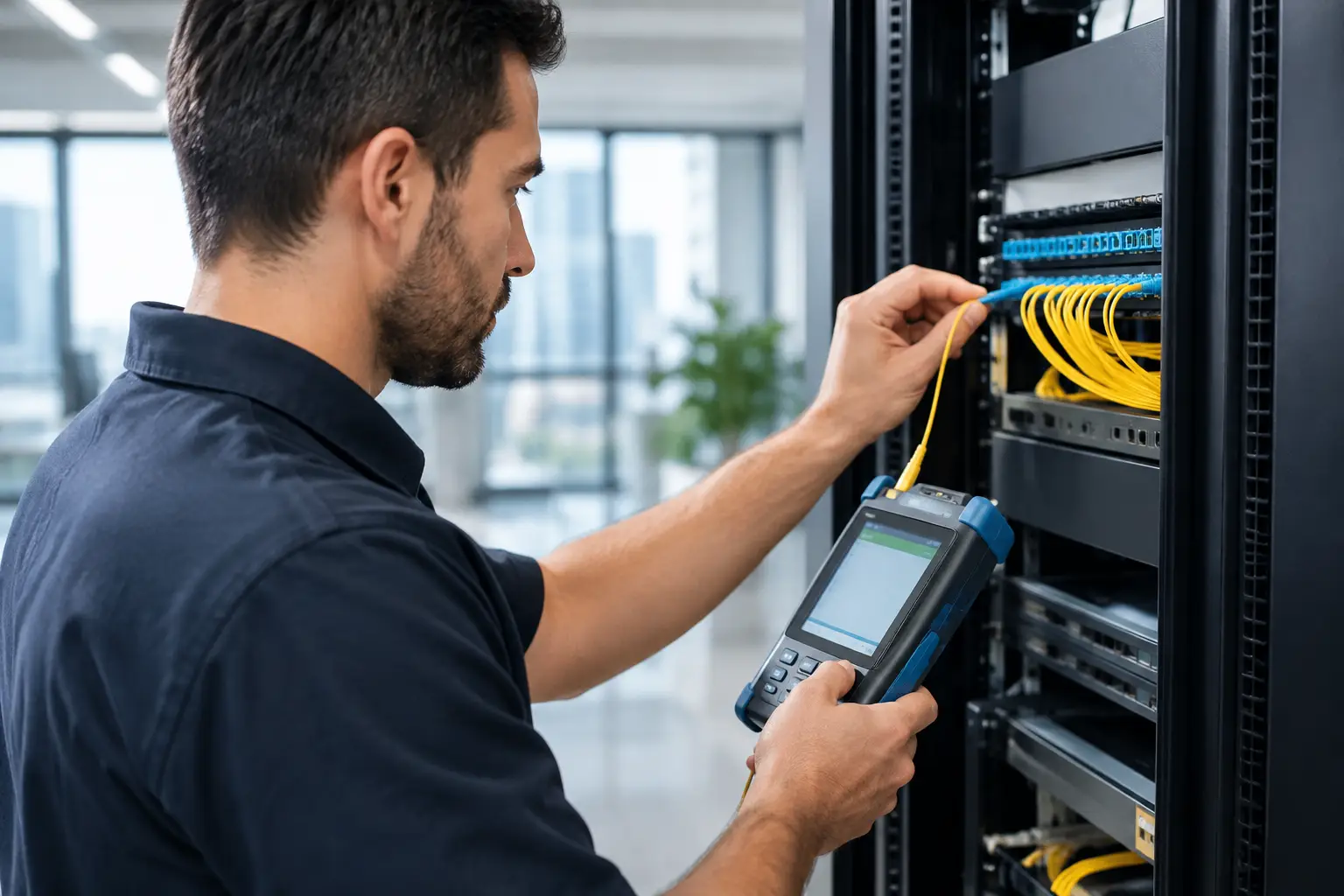

Insertion-loss testing
Insertion-loss testing measures how much optical power is lost across a link. It is the primary acceptance test for most installed fiber cabling because it assesses the complete channel or permanent link between endpoints.
The measured result should be compared against the approved loss budget. That budget accounts for fiber length, connectors, splices, and the planned testing method. A result that passes at one wavelength should not automatically be assumed to pass at another, especially on longer links or where the design calls for multiple wavelengths.
For commercial facilities, the value of insertion-loss testing is straightforward: it confirms that the installed pathway can carry light within defined limits. The report should identify both endpoints, fiber number, wavelength, measured loss, limit, pass or fail status, date, and technician or organization responsible for the test.
Trace testing for events and defects
An optical time-domain reflectometer, often called an OTDR, sends a pulse through the fiber and evaluates reflected light over distance. It can identify the approximate location of events such as connectors, splices, sharp bends, breaks, and sections of elevated loss.
Trace testing is especially valuable for long runs, outside plant segments, risers, backbone routes, and links with unexplained loss. It provides diagnostic detail that a simple end-to-end loss result cannot. But it requires skilled interpretation. A trace can be affected by launch conditions, dead zones near connectors, event settings, and the direction of the test.
Where the specification requires it, test in both directions and retain the traces. Some events appear differently depending on the direction of measurement. Averaging directional results may provide a more accurate picture of splice performance than relying on a single trace.
Do not accept reports without context
A test report is only useful when it can be audited and used later by operations. A folder of unnamed PDFs, screenshots, or handwritten notes is not a turnover package. It is a future troubleshooting expense.
Final documentation should reconcile physical labels, panel schedules, floor plans, fiber assignments, and electronic test results. Each record should show the actual cable or fiber identifier used in the field. If a link fails and is remediated, retain the original exception, the corrective action, and the passing retest. That creates a clear record of what happened rather than a clean-looking report that hides the work required to achieve acceptance.
The team should also distinguish between a permanent-link test and a channel test. A permanent-link test generally evaluates the installed cabling system without equipment patch cords. A channel test includes patch cords that may be replaced during operations. Both can be valid, but they are not interchangeable. The report must state what was tested.
Treat exceptions as decisions, not paperwork
Not every test failure requires replacing an entire cable. The right response depends on the amount of loss, the location of the event, the link's operational purpose, and the approved margin. A dirty connector may need cleaning. A bad termination may need to be rebuilt. A damaged segment may require replacement. An unexplained result should never be accepted merely because an active device links up.
If an exception is accepted, document who approved it, why it was acceptable, what service it affects, and what future action is required. An undocumented exception becomes an invisible risk transferred to facilities and IT after project closeout.
This is where one standard matters most. The same acceptance discipline should apply whether the fiber supports tenant connectivity, wireless access points, cameras, access control panels, building automation, or a critical data environment. Different services have different consequences, but all depend on a physical layer that someone has verified and agreed to own.
Build testing into turnover and ongoing operations
Final acceptance should include a joint review between the parties responsible for construction, facilities, and technology operations. Confirm that labels are in place, reports match the installed environment, exceptions are closed or formally accepted, and documents are stored where the operating team can retrieve them during an outage.
After turnover, preserve the baseline. When a link later develops errors or intermittent performance, current test results can be compared with the original acceptance data. That makes it easier to determine whether the issue is aging hardware, contaminated patching, construction damage, environmental stress, or a pre-existing installation defect.
Fiber testing is not a ceremonial closeout task. It is the evidence that the infrastructure behind critical services was built, measured, documented, and handed over with full accountability. When the first outage arrives, that evidence is what turns a vague vendor handoff into a controlled operational response.
